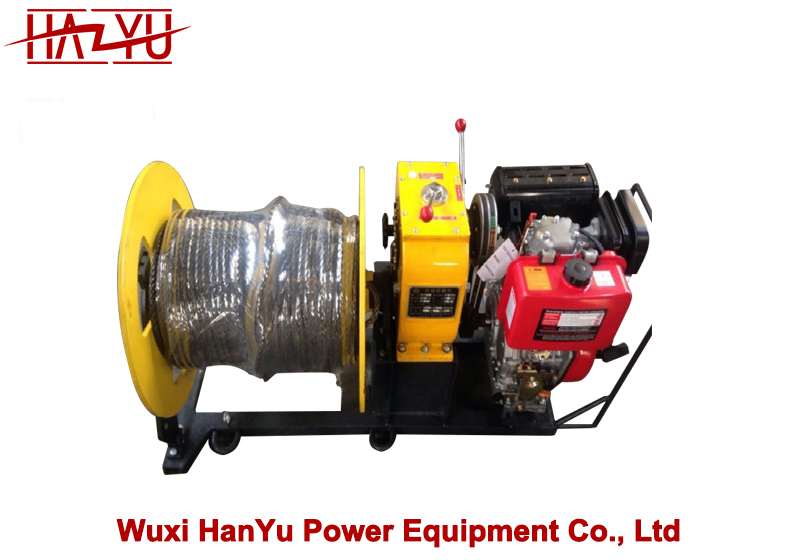

Transmission Line Stringing Equipment Cable Pulling Winch with Diesel Engine

Name: Transmission Line Stringing Equipment Cable Pulling Winch with Diesel Engine
Brand: HANYU
Price: 1 USD

Transmission Line Stringing Equipment Cable Pulling Winch with Diesel Engine Manufactures

Brand Name : HANYU

Model Number : BJJM5C

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15-35days

Packaging Details : case

Pulling speed : 5m/min

Power : Diesel engine 9kw

Type : Cable Pulling Winch with Diesel Engine

Pulling force : 50kn

Weight : 220kg

Usage : Power Line Construction

Contact Now

Transmission Line Stringing Equipment Cable Pulling Winch with Diesel Engine

It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable.
The winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. It can complete the tasks of heavy-lifting and dragging such as erecting the wire.
Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages.

Model	Gear	Pulling force(KN)	Pulling speed(m/min)	Power	Weight (kg)
BJJM5Q	Slow	50	5	HONDA GASOLINE GX390 13HP	190
	Fast	30	11
	Reverse	-	3.2
BJJM5C	Slow	50	5	Diesel engine 9kw	220
	Fast	30	11
	Reverse	-	3.2

Features
Speedy and Efficient. Safe and Reliable. Compact structure. Small volume. Light in weight. The wire rope can be directly wound on the winch.

Operation methods
Before turning on the machine, you must turn on the clutch first and put the racker for crosspiece - changing in the zero position. When moving the crosspiece, you should be quick. Otherwise the brake won’t work well. When turning on the machine, you shouldn’t work too fiercely. When changing the crosspiece position, you must turn on the clutch. Otherwise the gear will be damaged. After that, you should check whether the changing job is well done. Make sure you haven’t changed two crosspieces in one time. If there is any difficulty during the process of changing crosspiece position, you shouldn’t try to complete the job forcefully. Instead you should use the hand installment to help you complete the job. Concrete procedure: using the spanner to move the hand installment to a position with a certain angle, then you can change the crosspiece position smoothly.

Transmission Line Stringing Equipment Cable Pulling Winch with Diesel Engine
